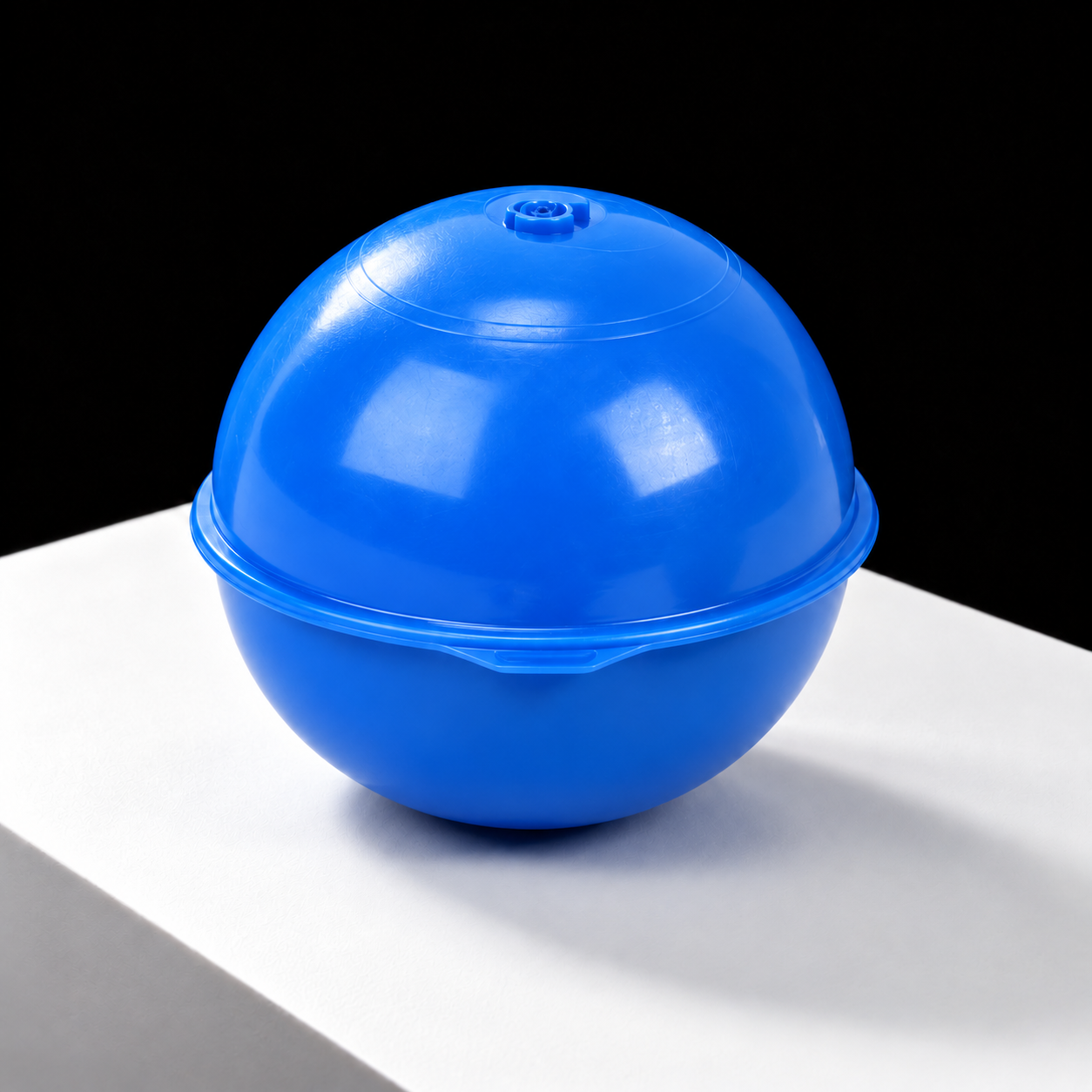

Water Passive Marker Balls

Self-levelling marker ball for marking key points along buried water pipes.

$41.00
  • Water Passive Marker Balls
Water Passive Marker Balls - Image 1
Product

Freight quote required. Delivery costs for this item need to be confirmed. Select Get a freight quote to send us your quantity and delivery details. Delivery timing will be confirmed with your quote.

Backfill covers the valve and the branch alike. Mark the point your maintenance crew will need to return to. Choose 1403-XR to mark a valve, branch or pipe connection during construction or maintenance. Tapex code 016106 identifies the blue water variant. The antenna levels itself inside the ball as the outer shell settles. A compatible locator can then pick up the buried marker, giving the crew a useful place to start.

At a glance

  • Blue shell and utility-specific frequency for water
  • Self-levelling antenna for a consistent locating position
  • Passive operation; no battery inside the marker
  • Published passive detection range up to 1.5 m with compatible equipment
  • Waterproof shell for life below ground

Features

  • The antenna finds its level

    The ball’s internal antenna settles into position as the shell moves.

  • Buried. Ready to respond.

    A passive marker gives the crew a way back to a valve, branch or pipe connection.

  • Blue above. Identified below.

    Colour and frequency distinguish the water marker.

The antenna finds its level

Backfill can shift the outer shell. The antenna levels itself inside the ball, maintaining the orientation used to locate the marked point.

Buried. Ready to respond.

An EMS-compatible locator sends a signal to the marker and detects its response. The marker needs no battery or external power connection, so there is no buried battery to replace.

Blue above. Identified below.

The blue shell makes the utility type visible at installation. Its utility-specific frequency lets the crew select the matching marker setting when they return.

Water Passive Marker Balls

Self-levelling marker ball for marking key points along buried water pipes.

Product

Freight quote required. Delivery costs for this item need to be confirmed. Select Get a freight quote to send us your quantity and delivery details. Delivery timing will be confirmed with your quote.

Same job.
More options.

Add Location Tools to

Mark now. Find it when it matters.

Select an EMS-capable model that supports this marker’s utility frequency. Confirm the working range for the intended burial depth. Use the marker response to narrow the search for the recorded point.

Explore Location Tools

Upgrade to Water Programmable Marker Balls

Leave more than a location

Choose the water programmable marker ball, 1423-XR/iD, when the next crew also needs asset information. Store pipe size, material and valve reference in the marker. Use a compatible iD locator to retrieve the information; read/write ranges must be checked separately.

Explore Water Programmable Marker Balls
