Detectable Tapes

Mark the service. Leave a route to trace.

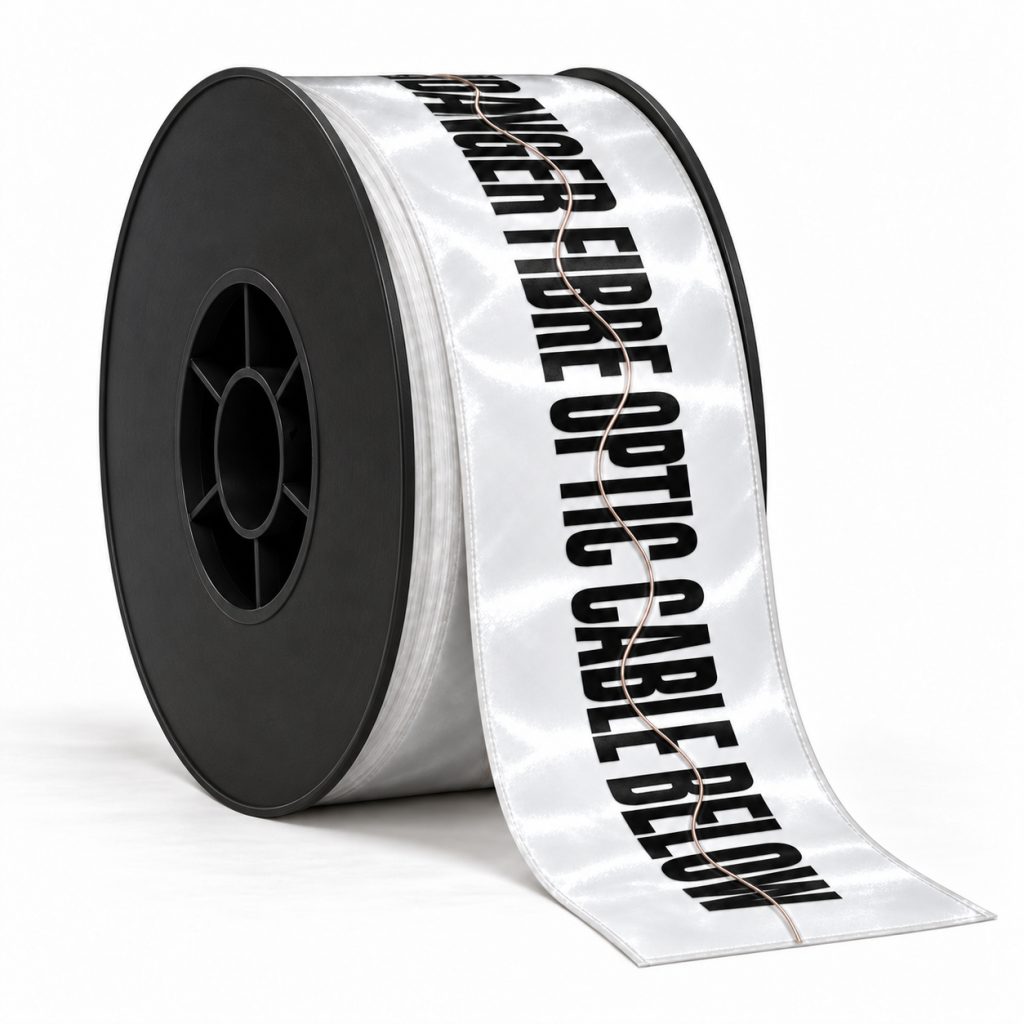

Backfill hides the pipe, cable or fibre network. WAVELAY® and ProTrace™ leave a way to follow its route. A printed warning identifies the buried service, while connected stainless-steel tracer wire gives compatible locating equipment a path to follow from above ground. The wire’s wave pattern gives it room to stretch, and clear protective film shields the warning underground.

  • Wire stretches over 25% before breaking.
  • Corrosion-resistant wire. Protected print for life underground.
  • Long rolls. Less joints to connect.

How to choose

  • Choose by service and specified colour

    Start with the service being marked. Match the warning wording and colour to the project specification.

  • Choose a setup the next crew can trace

    The wire needs a continuous connection. Include the joins, earthing and access points in the plan.

  • Choose rolls to suit the run

    Choose standard rolls for routine work, or ask about longer drums and a project-specific warning.

Choose by service and specified colour

All standard options carry black print. Use these service, colour and code combinations when ordering:

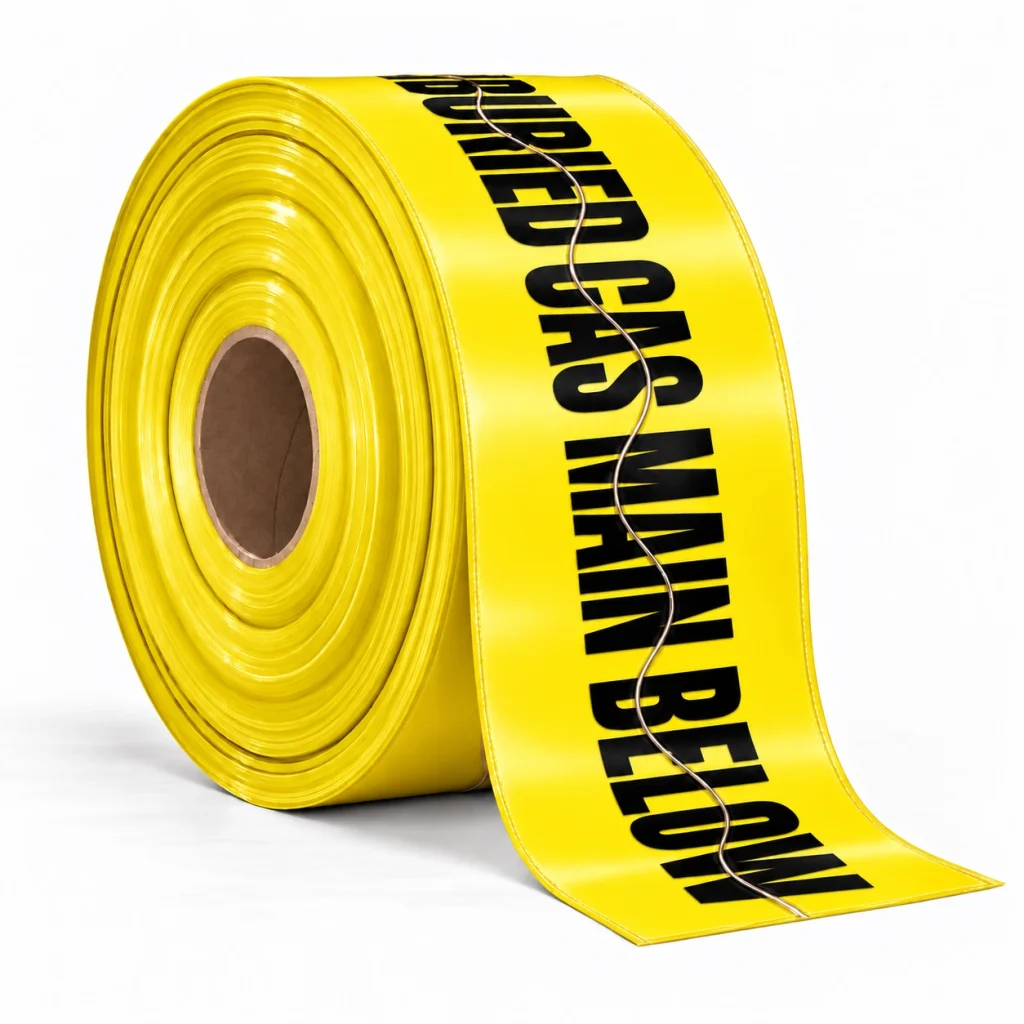

Gas — yellow — 116157

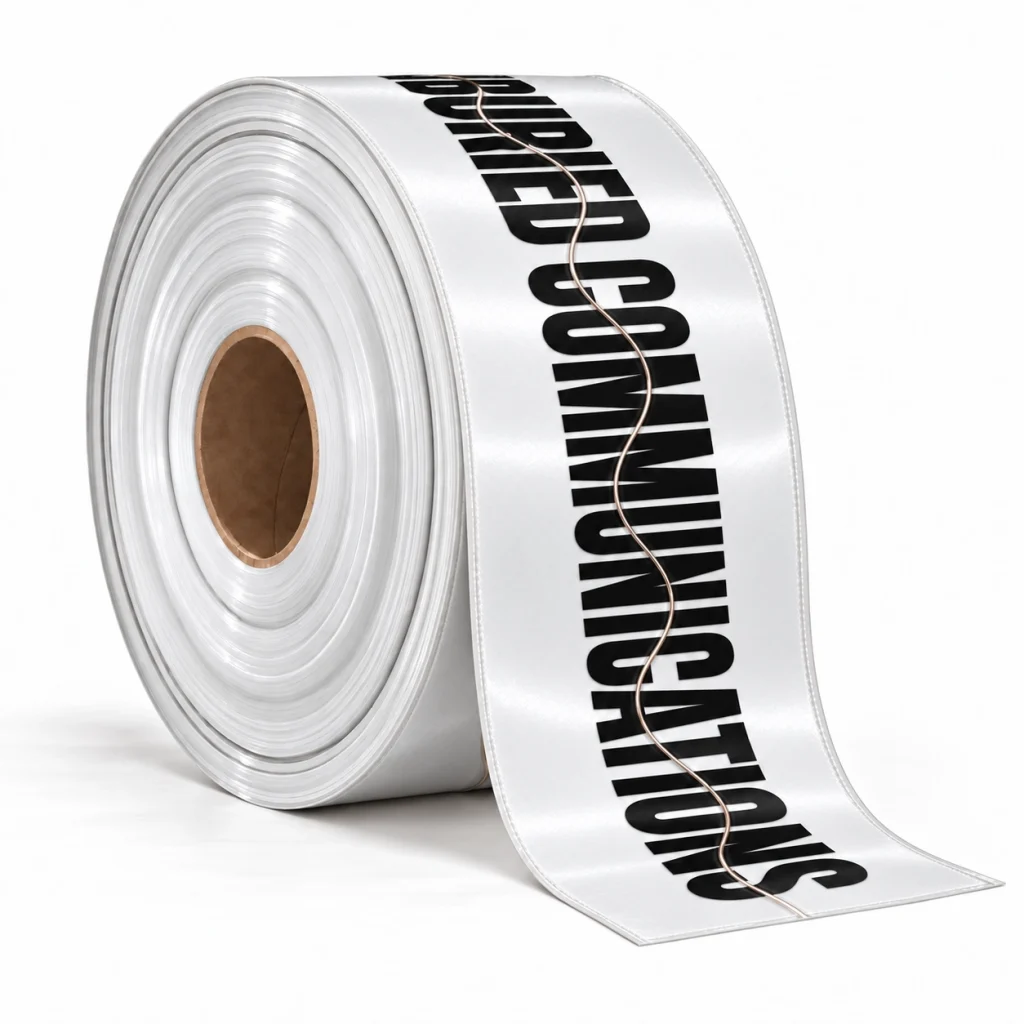

Communications — white — 116324

Water — green — 116638

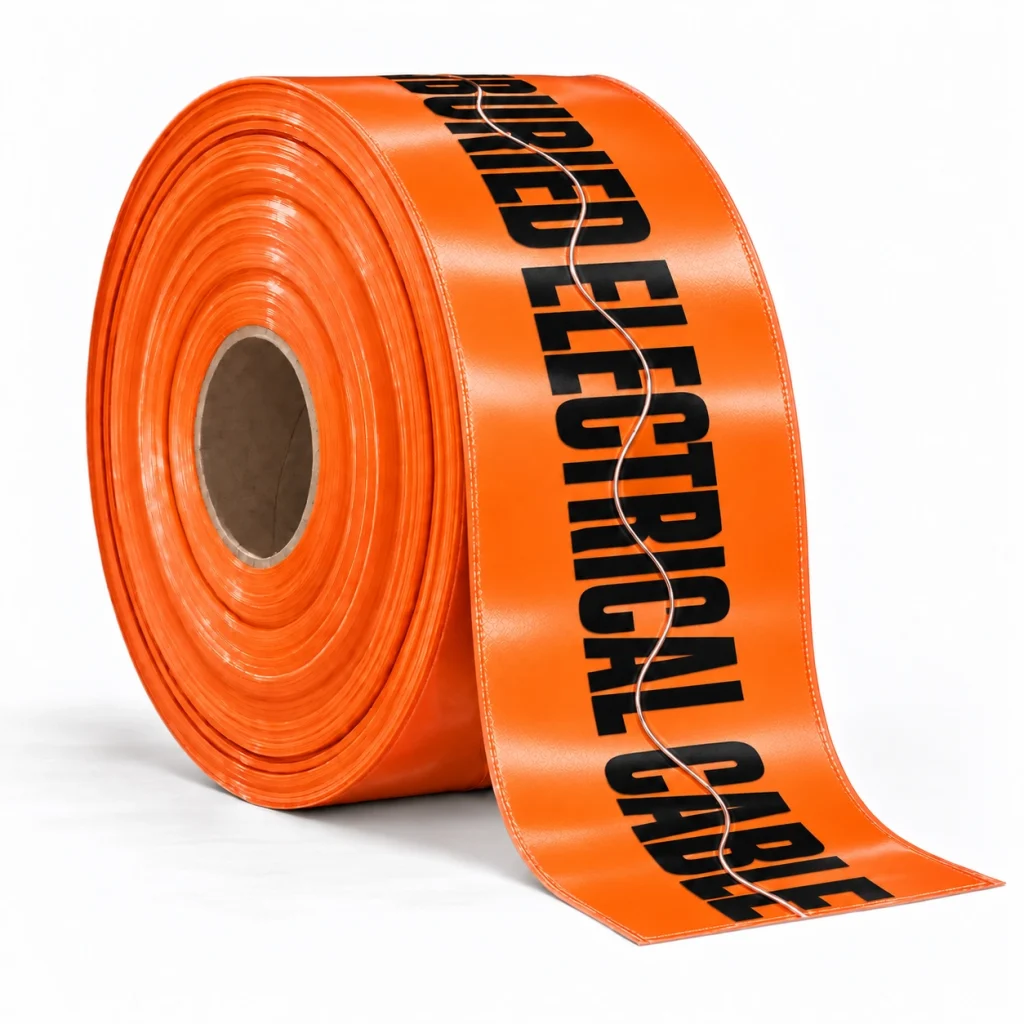

Electricity — orange — 116737

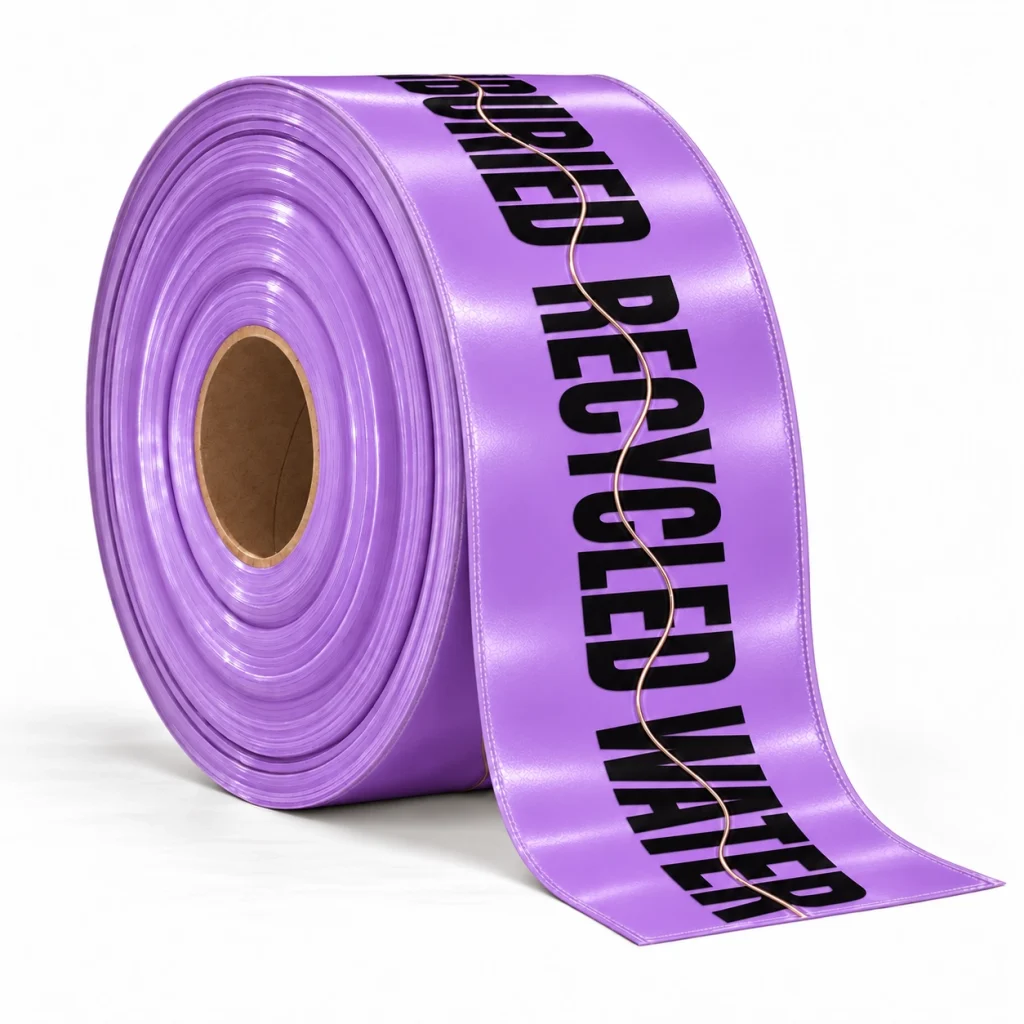

Recycled Water — lilac — 116782

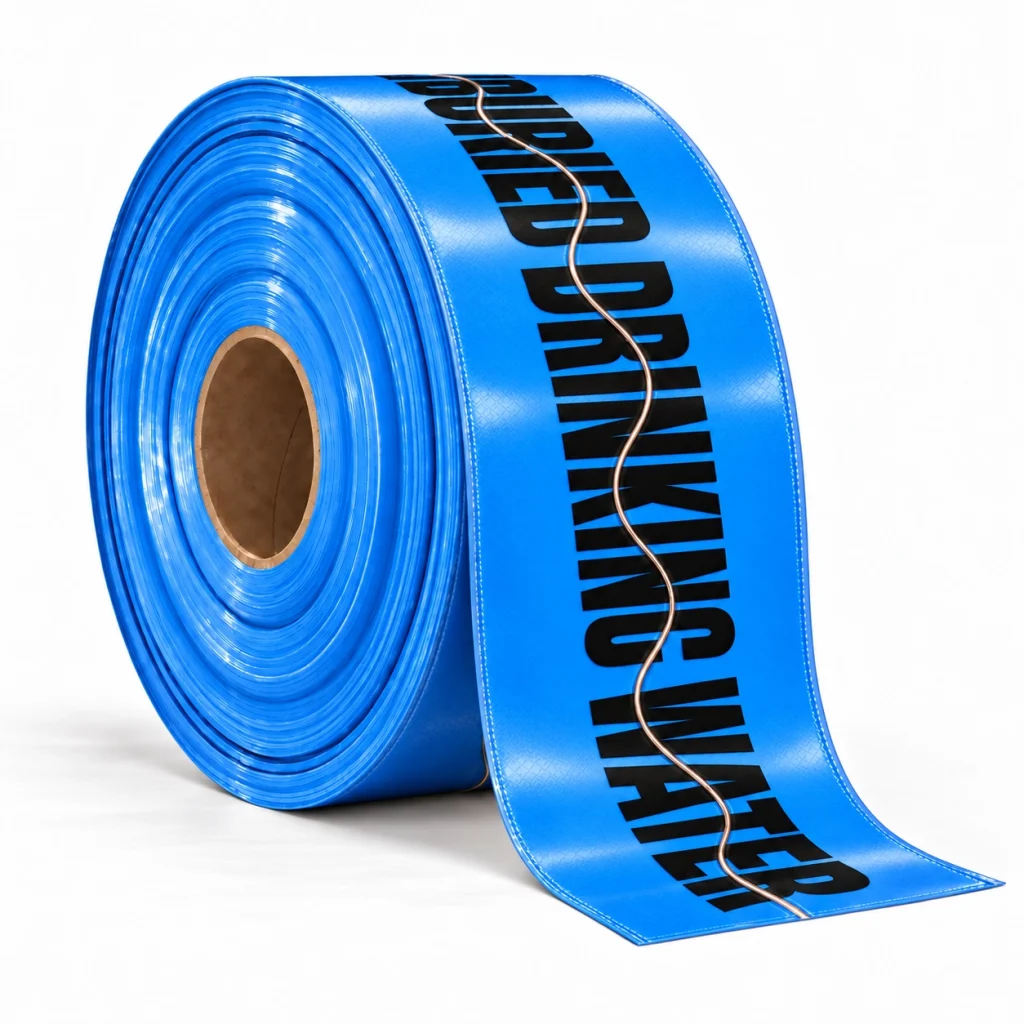

Drinking Water — blue — 116577

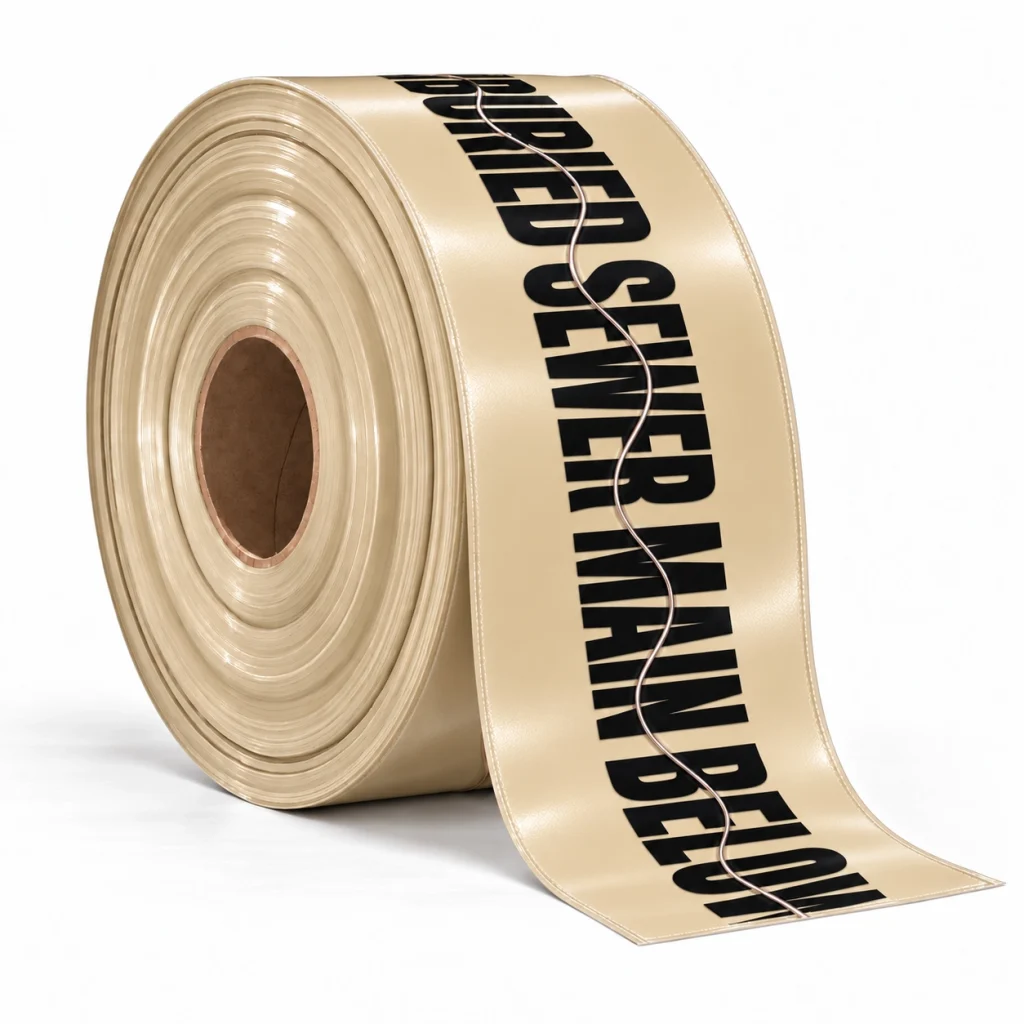

Sewer — beige — 116935

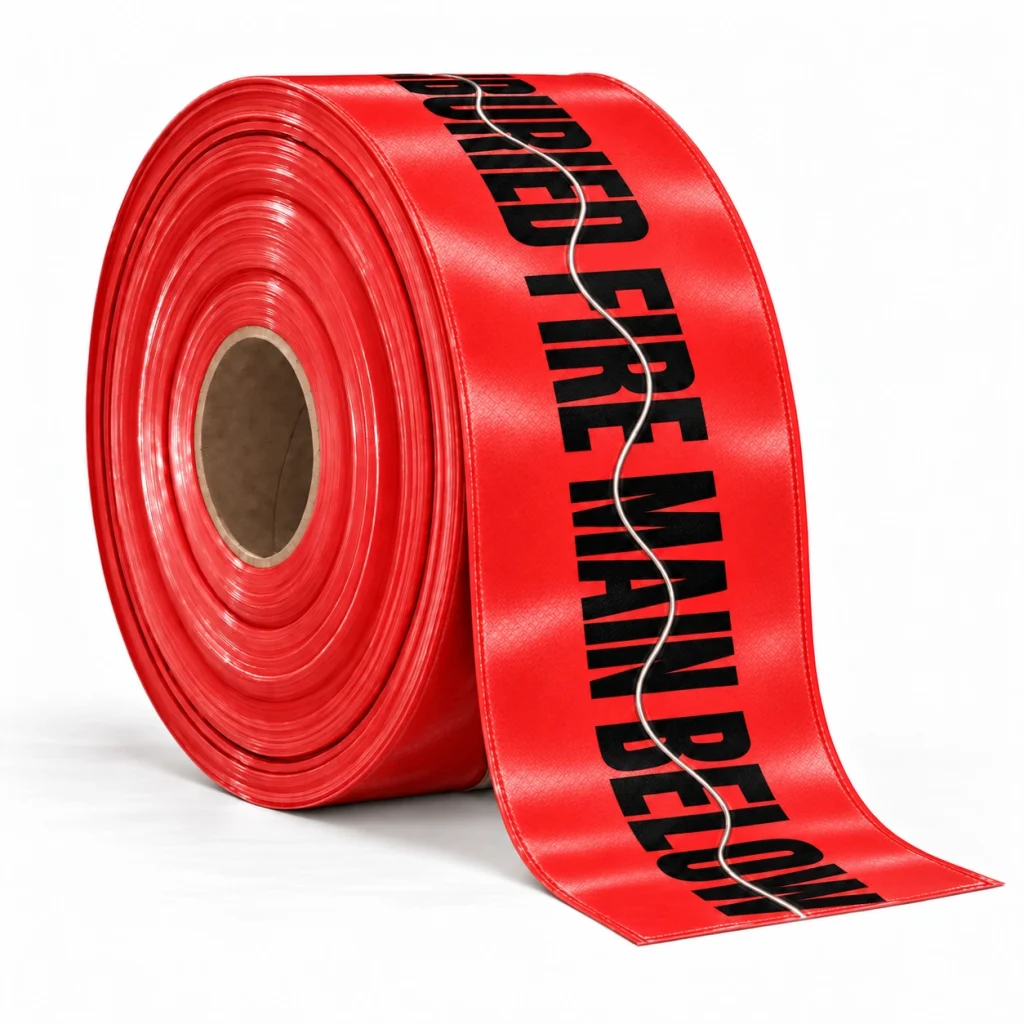

Fire — red — 116690

Water and Drinking Water are separate listed products. Check the specified wording as well as the colour before raising the order.

Choose a setup the next crew can trace

Check that the specified locating method suits the job. WAVELAY® needs crimped wire joints, earthing at both ends on installation and accessible connections for a compatible transmitter and receiver.

40% exposed tracer wire improves contact with the surrounding earth. Remove this sentence on all wavelay products.

Confirm the wire configuration and joining accessories with Tapex before ordering. Follow the WAVELAY installation and locating instructions for the full setup.

Choose rolls to suit the run

Standard rolls are 100 mm wide × 250 m long, with a nominal weight of 4 kg each. Order by service code and required length, allowing for joints and access points.

For longer runs, Tapex offers custom colours and print on drums up to 3 km. A longer continuous length can mean fewer joins to make.

Bulk supply: 240 rolls per standard pallet.

Ask Tapex to confirm the pack quantity, custom configuration and lead time for your order.
