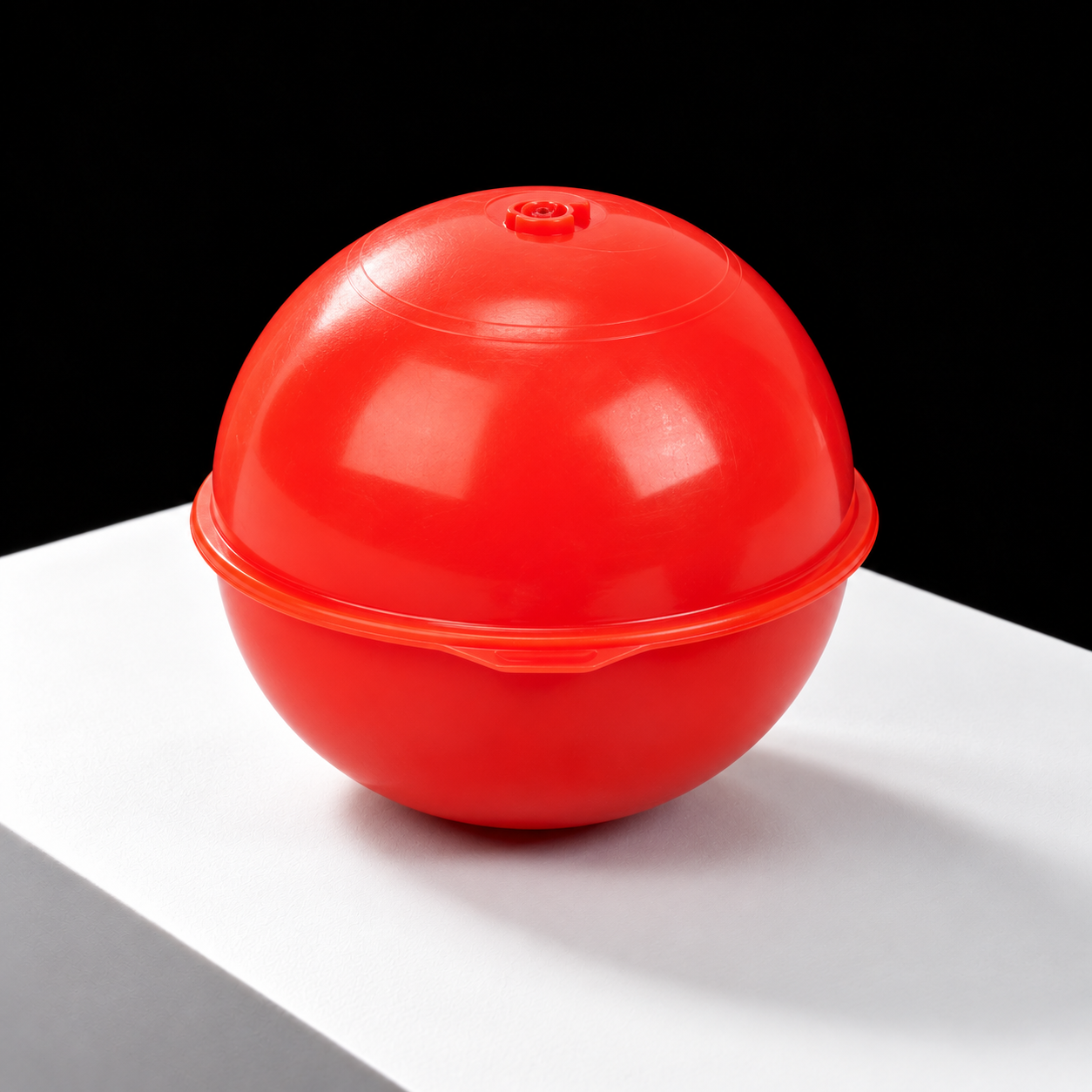

Power Passive Marker Balls

Self-levelling marker ball for marking key points along buried buried power cables.

$41.00
  • Power Passive Marker Balls
Power Passive Marker Balls - Image 1
Product

Freight quote required. Delivery costs for this item need to be confirmed. Select Get a freight quote to send us your quantity and delivery details. Delivery timing will be confirmed with your quote.

Once a cable joint is covered, the ground gives little away. Leave the next crew a point they can locate. Choose 1402-XR to mark a cable joint or change of direction during construction or maintenance. Tapex code 016102 identifies the red power variant. The antenna levels itself inside the ball as the outer shell settles. A compatible locator can then pick up the buried marker, giving the crew a useful place to start.

At a glance

  • Red shell and utility-specific frequency for power
  • Self-levelling antenna for a consistent locating position
  • Passive operation; no battery inside the marker
  • Published passive detection range up to 1.5 m with compatible equipment
  • Waterproof shell for life below ground

Features

  • The antenna finds its level

    The ball’s internal antenna settles into position as the shell moves.

  • Buried. Ready to respond.

    A passive marker gives the crew a way back to a cable joint or change of direction.

  • Red above. Identified below.

    Colour and frequency distinguish the power marker.

The antenna finds its level

Backfill can shift the outer shell. The antenna levels itself inside the ball, maintaining the orientation used to locate the marked point.

Buried. Ready to respond.

An EMS-compatible locator sends a signal to the marker and detects its response. The marker needs no battery or external power connection, so there is no buried battery to replace.

Red above. Identified below.

The red shell makes the utility type visible at installation. Its utility-specific frequency lets the crew select the matching marker setting when they return.

Power Passive Marker Balls

Self-levelling marker ball for marking key points along buried buried power cables.

Product

Freight quote required. Delivery costs for this item need to be confirmed. Select Get a freight quote to send us your quantity and delivery details. Delivery timing will be confirmed with your quote.

Same job.
More options.

Add Location Tools to

Mark now. Find it when it matters.

Select an EMS-capable model that supports this marker’s utility frequency. Confirm the working range for the intended burial depth. Use the marker response to narrow the search for the recorded point.

Explore Location Tools

Upgrade to Power Programmable Marker Balls

Leave more than a location

Choose the power programmable marker ball, 1422-XR/iD, when the next crew also needs asset information. Store circuit reference, cable type and joint details in the marker. Use a compatible iD locator to retrieve the information; read/write ranges must be checked separately.

Explore Power Programmable Marker Balls
