Gas Programmable Marker Balls

Programmable marker ball for finding and identifying buried gas pipes.

$55.00
  • Gas Programmable Marker Balls

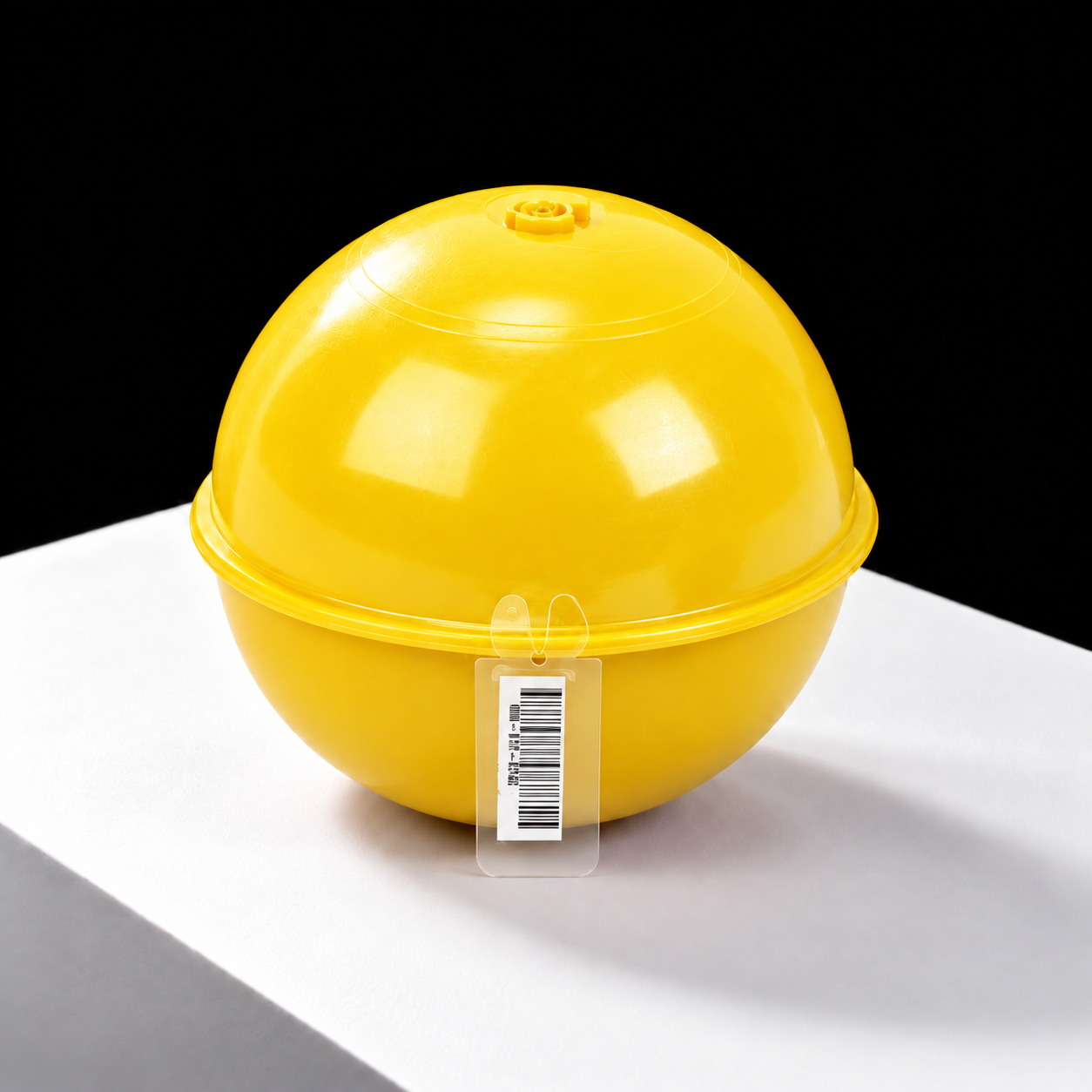

Gas Programmable Marker Balls - Image 1
Product

A service connection takes minutes to cover. Make it easier for the next crew to find the same point. Choose 1425-XR/iD to mark a buried valve, fitting or service connection during construction or maintenance. Tapex code 016118 identifies the yellow gas variant. Store pipe material, size and fitting reference in the iD marker and retrieve them with a compatible locator. The next crew can find the point and read the details left with it.

At a glance

  • Yellow shell and utility-specific frequency for gas
  • Self-levelling antenna for a consistent locating position
  • Passive operation; no battery inside the marker
  • Read/write iD memory for pipe diameter, material and junction reference
  • Waterproof shell for life below ground

Features

  • The details stay with the point

    Store pipe material, size and fitting reference where the crew will need them.

  • A number you can follow

    A unique serial number connects the marker to your asset records.

  • The antenna finds its level

    A self-levelling antenna helps keep the marker ready for a return visit.

The details stay with the point

Program the iD marker with the asset information needed for future work. A compatible read/write locator retrieves those details at the marked point, helping the crew connect what is underground with what is on record.

A number you can follow

Each iD marker has its own pre-programmed serial number. Link that reference to your mapping or GIS records so field observations and office records refer to the same marker.

The antenna finds its level

Backfill can shift the ball’s outer shell. The antenna levels itself inside, maintaining the orientation used for locating the marked point.

Gas Programmable Marker Balls

Programmable marker ball for finding and identifying buried gas pipes.

Product

Same job.
More options.

Add Location Tools to

Mark now. Find it when it matters.

Select a model that supports 3M iD markers and the required utility frequency. Confirm both reading and writing distances before planning the installation. Locate the point and retrieve its stored details during the same field visit.
