Detectable Tape
Detectable Tape Detectable Tape Detectable Tape
WAVELAY®
detectable tape

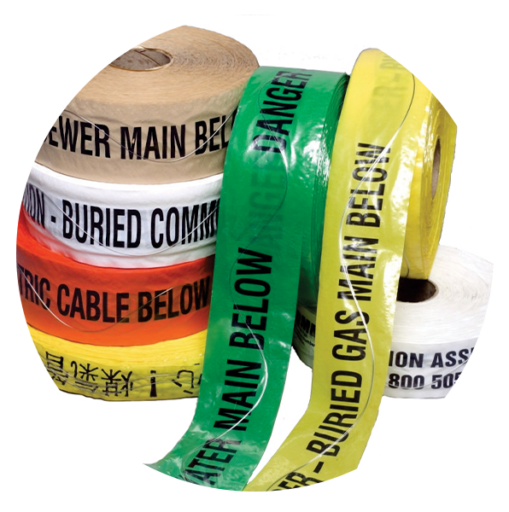

WAVELAY® Detectable Tracer Tape is an underground warning tape incorporating a 0.7mm tracer wire laid in a sinusoidal wave pattern, laminated between two layers of low-density, lead-free, virgin grade, rot-resistant polyethylene. The WAVELAY® wire pattern allows enhanced detectability and stretch to over 25% before breaking.
The top print guard layer protects the warning message and locks in the tracer wire. Standard-size rolls are 100mm x 250m.
WAVELAY® can be supplied in custom prints and colours and on cable drums up to 3km long.
PRODUCT SPECIFICATION
| CODE | PRODUCT DESCRIPTION | COLOUR | SIZE | UNIT MEASURE | UNIT WEIGHT | UNITS PER PALLET |
|---|---|---|---|---|---|---|
| 116157 | Wavelay Gas | Yellow/Black | 100mm x 250m | roll | 4kg | 140 |
| 116324 | Wavelay Communications | White/Black | 100mm x 250m | roll | 4kg | 140 |
| 116638 | Wavelay Water | Green/Black | 100mm x 250m | roll | 4kg | 140 |
| 116737 | Wavelay Electricity | Orange/Black | 100mm x 250m | roll | 4kg | 140 |
| 116782 | Wavelay Recycled Water | Lilac/Black | 100mm x 250m | roll | 4kg | 140 |
| 116577 | Wavelay Drinking Water | Blue/Black | 100mm x 250m | roll | 4kg | 140 |
| 116935 | Wavelay Sewer | Beige/Black | 100mm x 250m | roll | 4kg | 140 |
| 116690 | Wavelay Fire | Red/Black | 100mm x 250m | roll | 4kg | 140 |
