Copperhead Tracer Wire

COPPERHEAD TRACER WIRE

The Copperhead®️ Tracer Wire System ensures non-metal pipelines can be accurately located for the life of the pipeline. Copperhead Copper Clad Steel Tracer Wire combines the conductivity of copper (for easy detection) with the strength of steel. The high-strength carbon steel core makes the wire ideal for directional drilling applications (as well as trenching), minimising wire breaks. Every wire has a protective insulating sheath to prevent corrosion.

  • Superior impact strength
  • Strong, resilient, and flexible
  • 11% lighter than solid copper
  • Superior underground protection



Call us to Get a Quote    Shop Now

Copperhead Tracer Wire

DETECT FEATURES

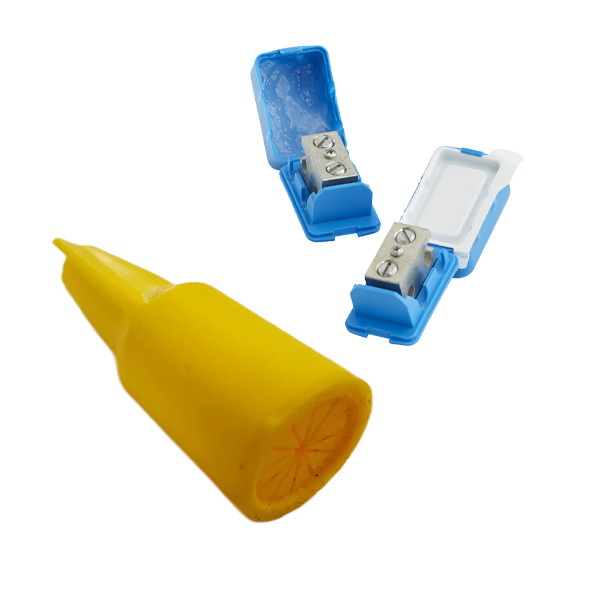

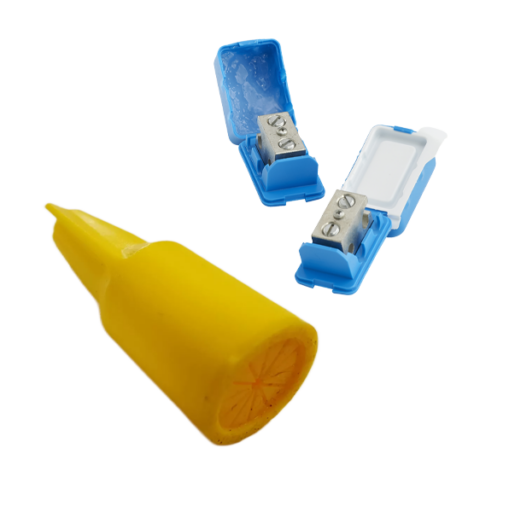

WATERPROOF CONNECTORS

Waterproof connectors join the insulated tracer wire, preventing corrosion and ensuring the system lasts the life of the pipeline. There are two types of connectors available for standard wires:

Single Lug Connectors
  • To join up to 4 cut ends
  • Easy to use – strip off 2cm insulation & twist in the joiner head to join wires
  • Silicon gel in the head makes the join waterproof
3 Way Connectors
  • For joining up to 2 laterals to an existing tracer wire without cutting it
  • Strip off 2cm of existing wire and ends of joining wires
  • Silicone gel in the head makes it waterproof

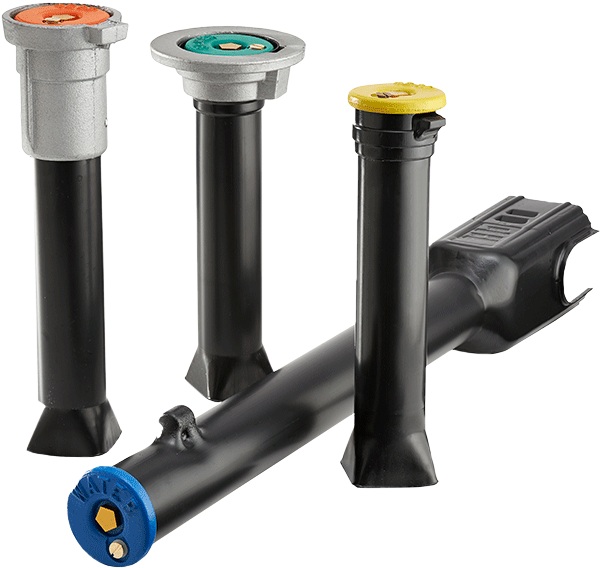

TRACER WIRE TEST STATIONS

Copperhead’s Snakepit®️ Test Stations make locating underground utilities easy!

The SnakePit®️ offers an insulated direct connection point for your locator transmitter that attaches easily to tracer wire. There is no need to unlock the lid to connect to the tracer wire. The SnakePit®️ sits flush to the ground, pavement, or roadway. The heavy-duty cast iron lid has relief lettering of the service. The encapsulated magnet system makes finding the access point simple. Anti-corrosion technology and a locking cover will give you peace of mind.

  • Easy installation
  • Direct connect for locator
  • Magnet in lid
  • Built to last

PRODUCT SPECIFICATION

CODEPRODUCT DESCRIPTIONBREAK STRENGTHSIZEUNIT MEASUREUNIT WEIGHTRECOMMENDED APPLICATION
WT1502SFTracer wire Superflex CCS 1mm x 150m Green34 kg1mm x150mreel2kgOpen Cut Trench
WT1504Tracer wire HS CCS 1mm x 150m Yellow48 kg1mm x150mreel2kgOpen Cut Trench
WT15045Tracer wire HS CCS 1mm x 305m Yellow48 kg1mm x305mreel4 kgOpen Cut Trench
WT1525Tracer wire HS CCS 1mm x 305m Blue48 kg1mm x305mreel4 kgOpen Cut Trench
WT1505Tracer wire HS CCS 1mm x 760m Yellow48 kg1mm x760mreel12 kgOpen Cut Trench
WT1534Tracer wire HS CCS 1mm x 150m White48 kg1mm x150mreel2 kgOpen Cut Trench
WT1502Tracer wire HS CCS 1.6mm x 150m Yellow128 kg1.6mm x 150mreel4 kgOpen Cut Trench
WT1402BTracer wire HS CCS 1.6mm x 305m Blue128 kg1.6mm x 305mreel8 kgOpen Cut Trench
WT1503Tracer wire HS CCS 1.6mm x 760m Yellow128 kg1.6mm x 760mreel19 kgOpen Cut Trench
WT1403BTracer wire HS CCS 1.6mm x 760m Blue128 kg1.6mm x 760mreel19 kgOpen Cut Trench
WT1509Tracer wire Soloshot 2mm x 760m Yellow522 kg2mm x 760mreel27 kgDirection Drill
WT1509BTracer wire Soloshot 2mm x 760m Blue522 kg2mm x 760mreel27 kgDirection Drill
WT1507CTracer wire Soloshot 2mm x 760m Cream522 kg2mm x 760mreel27 kgDirection Drill
PBX-50B1000Tracer wire Soloshot Xtreme 305m Pipe Burst2200 kg4mm x 305mreel45 kg
WT251002.5mm SDI Tracer Wire Cable Nylon2.5mm x 500mreel
WT1506Snakebite connector 1.6mmfits 1.6mm wire x 3jar 20
WT1507Single lug connector yellowUniversalpack 20
WT1517Single lug connector blueUniversalpack 20
WT15273-Way direct bury lug connectorUniversal/Xtremepack 10
PBX-SCPB01Soloshot Xtreme inline spliceXtremeeach
SP15000Snake Pit Test Station 2T, 14” yellow lidAdjustableeach2 kg
SP-KEYPentagon Wrench for Snake piteach
