Rock Shield

Rock Shield   Rock Shield   Rock Shield

ROCK shield

Rock Shield is an extruded plastic mesh used to wrap pipes to prevent rock damage to the cathodic protective coatings during trench backfilling. Rock Shield comes in a variety of widths to cover a comprehensive range of pipeline diameters and applications.

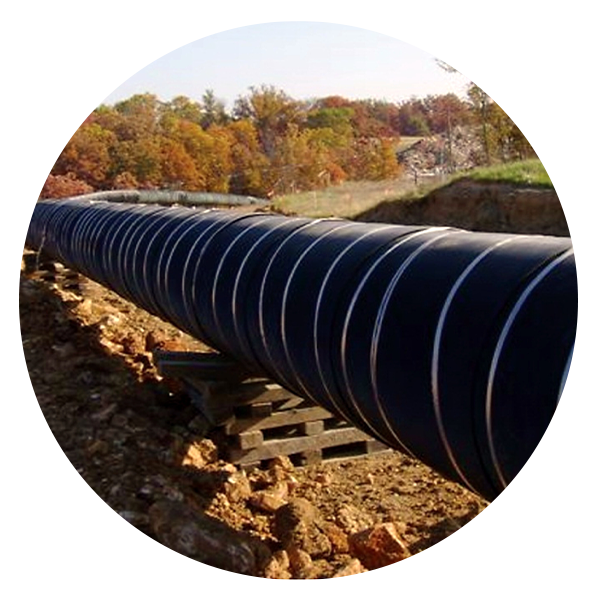

Rock Shield can be applied longitudinally or spiral-wrapped around the pipe as shown in the diagram. Sections can be joined with a gas torch, or secured with a variety of adhesive and non-adhesive strapping tapes or cable ties.


View Data Sheet     Call us to Get a Quote

Features   Features   Features


  • Prevents damage to protective coatings on pipes
  • Enables the use of rocky backfill, no need to truck in sand or fine sediment
  • Manufactured from high-density polyethylene with an optional blowing agent to produce a strong cellular structure for maximum impact protection
  • Chemically inert, cannot rot
  • Open mesh does not inhibit cathodic protection integrity testing
  • Supplied as standard rolls or cut lengths for wrapping or folding
  • Manufactured in widths ranging from 1.0m to 2.0m


K027606CRockshield 950gsm 1.8mBlack1.8m x 20mroll436
K027604CRockshield 950gsm 1.5m Black 1.5m x 30mroll436
Other Rockshield sizes available as special order
