3M EMS Path Marking Tape & Rope

3M EMS Full Range Markers    3M EMS Full Range Markers    3M EMS Full Range Markers

3M™ EMS PATH MARKING TAPE & ROPE

3M EMS Full Range Markers provide an accurate, convenient, long-lasting method of marking underground infrastructure. The marker range is up to 2.4 metres from marker to locator.

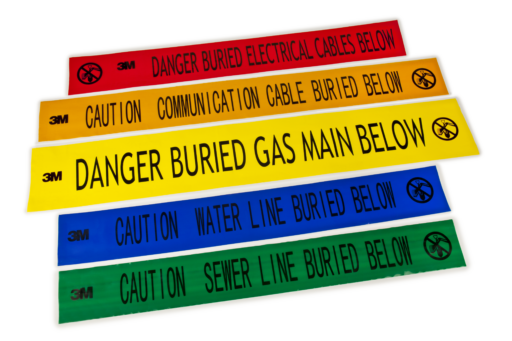

3M has developed an effective way to locate the path of underground plastic pipes and conduits, eliminating the need, problems, and costs associated with tracer wire and test stations. 3M™ Electronic Marking System uses a new EMS marker technology embedded into a caution tape or pull rope for installation near or above the buried facility and helps provide continuous path location.

When energized using a 3M™ Dynatel™ Locator 7000 Series (7207550, 7573), the markers are activated. The markers require no batteries, and there is no need to hook up an external transmitter or search for access points. The markers work independently, so even if a section of caution tape is cut or removed, the other markers on the tape would continue to provide an accurate location. Each version of 3M™ EMS Caution Tape or rope is tuned to a frequency specific to the path of that utility (gas, telco, or wastewater) and can be buried up to 0.76 m.

Features   Features   Features

FEATURES

The Path Marking Tape is compliant with AS/NZ Standards. The Path Marking Tape and Path Marking Rope solutions are available in Gas, Electrical, Water, Sewer & Communications configurations.

  • The system eliminates the need to install a tracer wire
  • No access points or connections are required
  • The user has the ability to locate without the need for a transmitter
  • Unique identification is provided for each utility tape
  • The system offers low installed costs

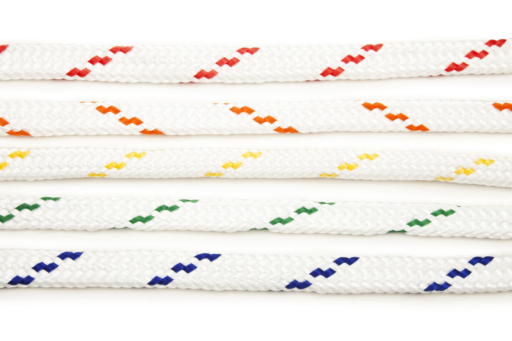

  • Rope is designed for use with horizontal directional drilling
  • Signal path is maintained even if the tape or rope is cut or damaged
  • Product design life is approximately 50 years



PRODUCT SPECIFICATION

DeptRoll LengthMarker SpacingCommsPowerWaterSewerGas
Tape
1200mm400m2400mm7611XR7612XR7613XR7614XR7615XR
Rope1200mm300m2400mm7701-HTS7702-HTS7703-HTS7704-HTS7705-HTS
HTS = High Tensile StrengthXR = Extended Range

3M™ iD Markers can be customized to include customer-specific information such as facility data, type of application, material type, size, and placement date.
