Overpipe Protection Plates
OVERPIPE™ PROTECTION PLATES
Overpipe™ was developed in France as an alternative to the 150 – 200mm thick concrete slabs used as an underground protection barrier over high-pressure gas pipelines. Overpipe is designed as a penetration barrier, to withstand the attack of excavators and post-hole augers.
Due to Overpipe™’s effectiveness and the cost savings generated, it is now used by major gas, power, telecom and rail utilities across the globe to protect critical buried infrastructure.
Overpipe™ is a 15mm thick, 1800mm long virgin polyethylene plate, brightly coloured with an embossed warning message. Widths vary to suit different pipe and cable diameters. Thanks to the properties of the material, colour, and performance will be unaffected by soil conditions for many decades underground – hence the 50-year warranty.

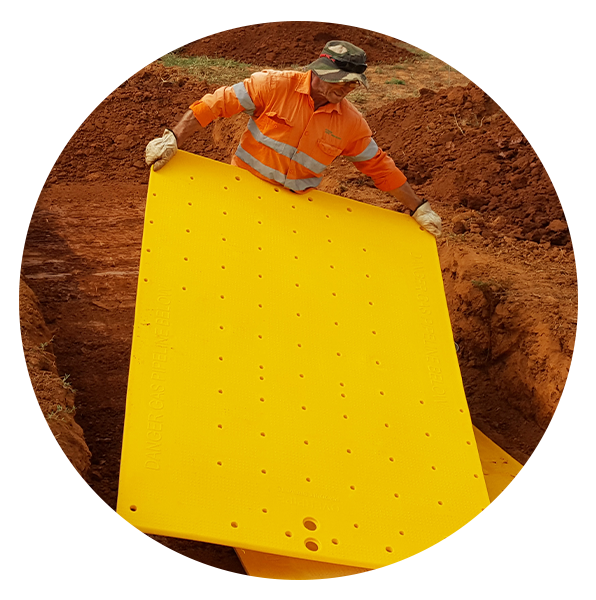

Unlike concrete, Overpipe™ is light, easily transported, can be cut to size, and is flexible and prefabricated. This allows the plates to be removed intact to enable access to the pipe or cable, then re-laid.
FEATURES
- More economical than concrete
- Light weight but tough 15mm thick HDPE
- High VIS yellow, embossed warning
- Range of widths – 500mm to 1800mm
- 39 sheets per pallet, low transport cost
- Overlapping plates with a simple joiner
- Holes for drainage & CP monitoring

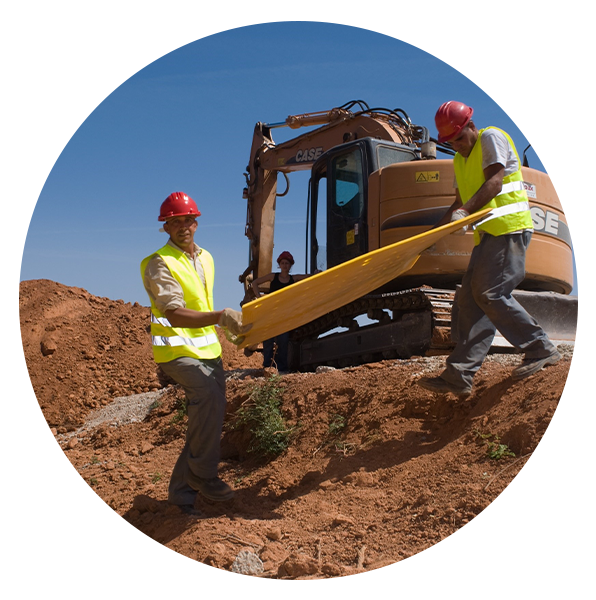

- Easy to install, two-man lift
- Anti-slip surface
- 50 year warranty
- Custom sizes and colours
PRODUCT SPECIFICATION
CODE | PRODUCT DESCRIPTION | COLOUR | SIZE | UNIT MEASURE | UNIT WEIGHT | UNITS PER PALLET |
---|---|---|---|---|---|---|
811008 | Overpipe OV5 570 Gas | Yellow | 570 x 1500 x 15 | each | 12 | 50 |
811009 | Overpipe OV6 820 Gas | Yellow | 820 x 1500 x 15 | each | 18.5 | 50 |
811020 | Overpipe OV1 1250 Gas 2m | Yellow | 1250 x 2000 x 15 | each | 34 | 30 |
811022 | Overpipe OV3 1500 Gas 2m | Yellow | 1500 x 2000 x 15 | each | 41 | 30 |
811031 | Clip & plug connector APA approved connector system | 1 pair | 1 x yellow, 1 x black | each | ||
811032 | Spliced Rope connectors | 4 per plate | 700mm | each | 120 |
